Product Overview:

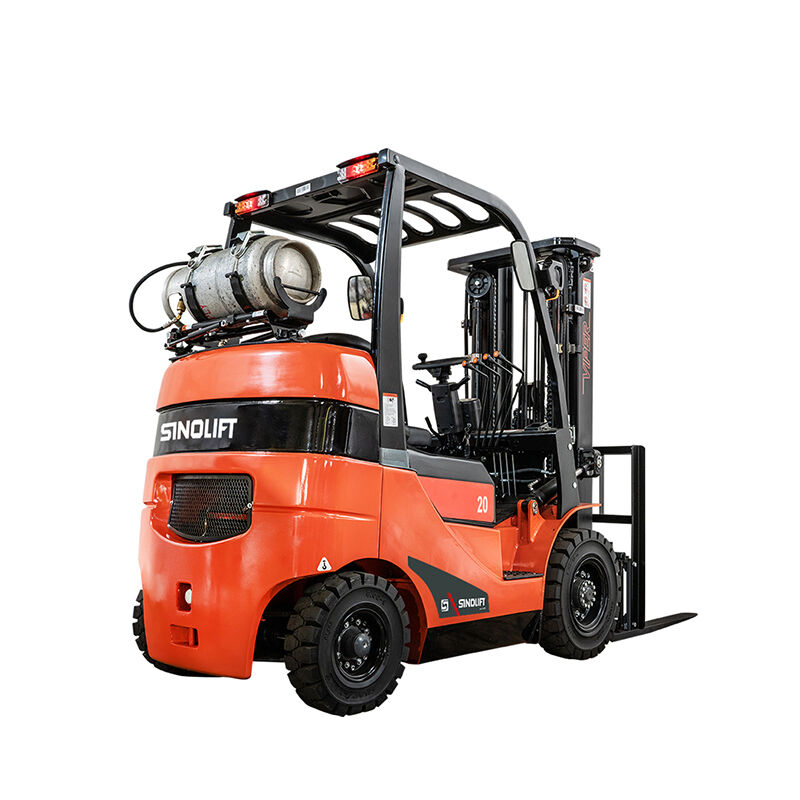

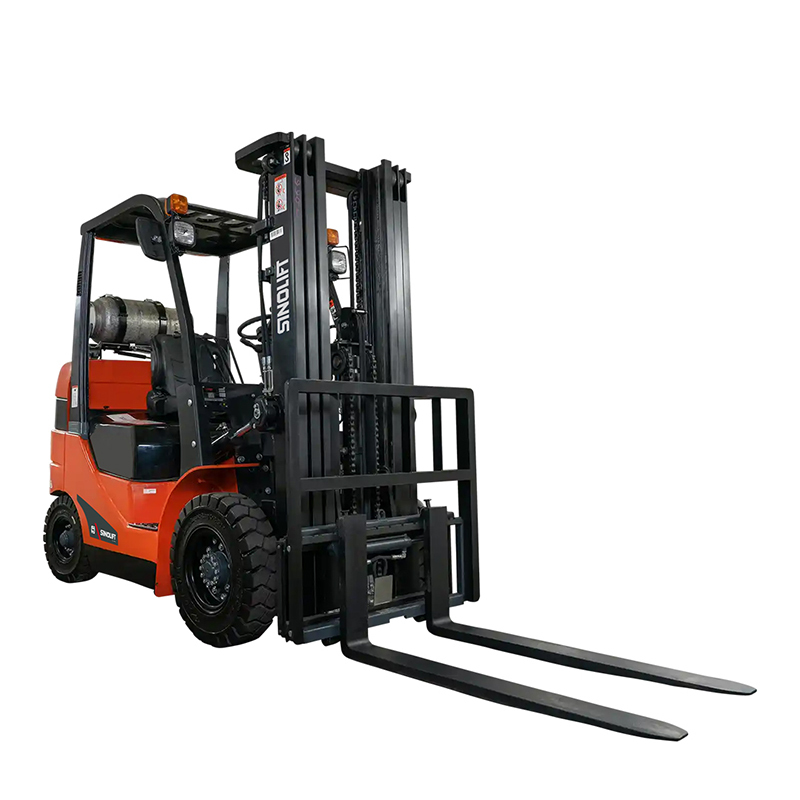

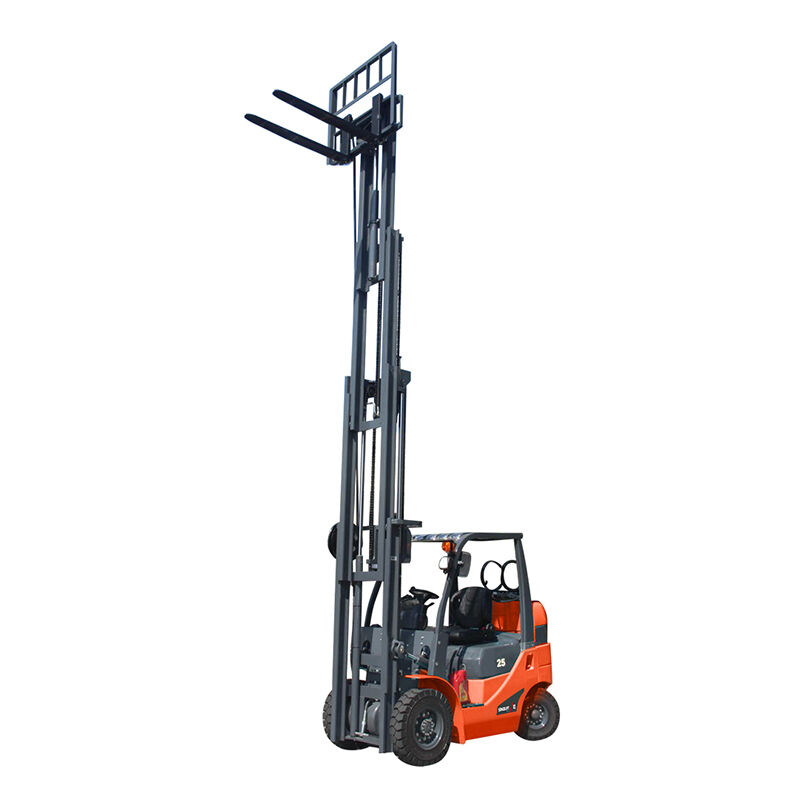

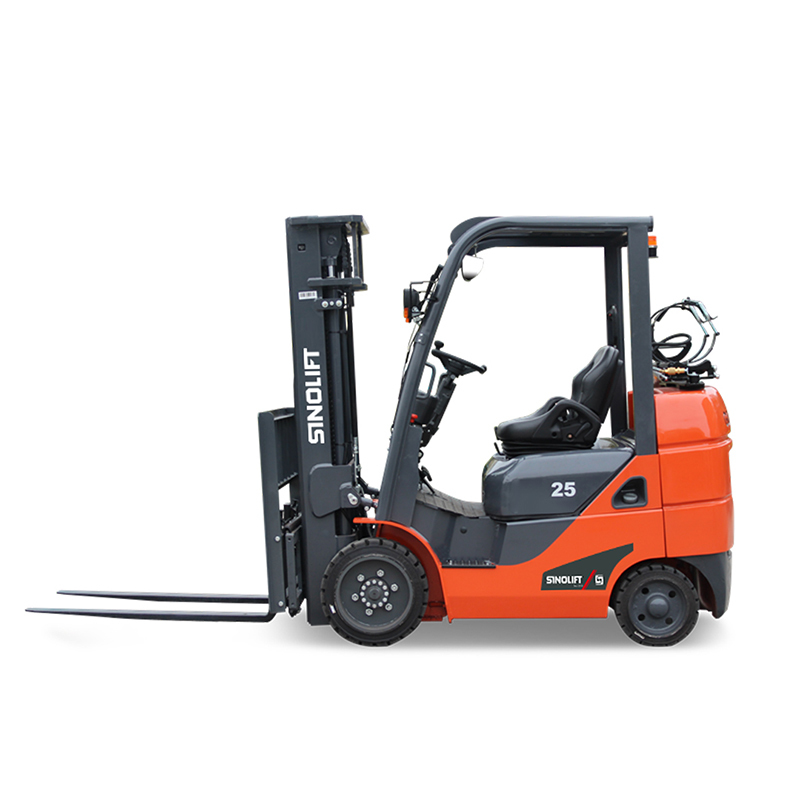

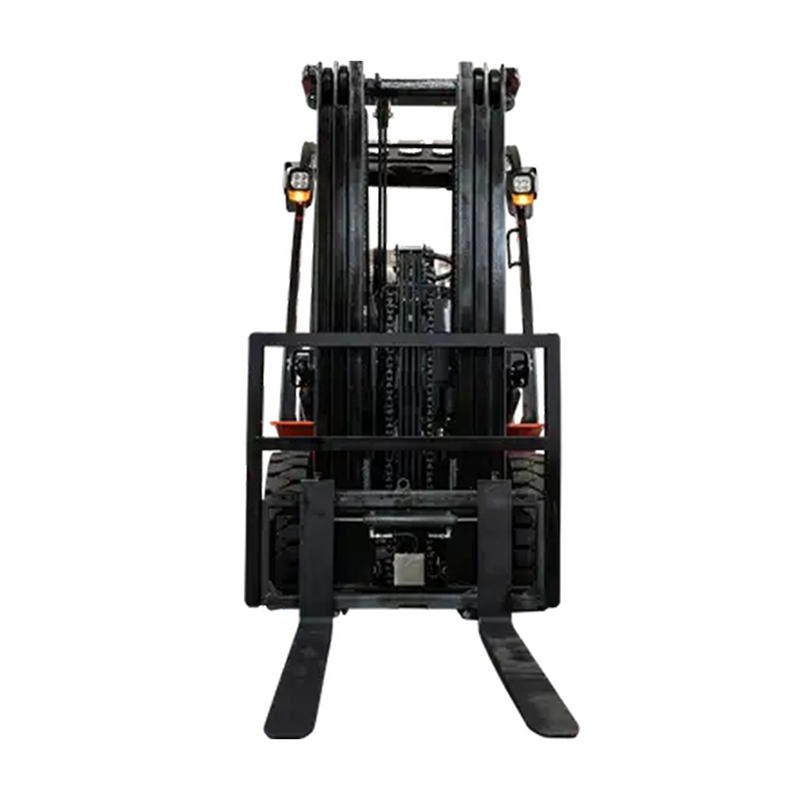

The SINOLIFT C Series 2.0-2.5T Internal-Combustion Cushion Tire Forklift is a robust, globally compliant material handling solution engineered for flexibility and efficiency. Built with heavy-duty steel, it supports 2.0-2.5T loads, offers optional dual-fuel (LPG/gasoline) power, and features a compact design for narrow spaces. Compliant with EPA Tier 4 Final emission standards and tailored to meet European/American market requirements, it delivers stable, safe operations across diverse industrial scenarios.

Key Features:

Compact & Maneuverable: Shorter wheelbase and small turning radius, ideal for tight workspaces.
Reliable Power: North America-certified engine (EPA Tier 4 Final) with strong torque, low emissions, and optional dual-fuel (LPG/gasoline) flexibility.
Ergonomic Comfort: 150mm adjustable seat, small-diameter steering wheel, flat-body design with spacious legroom, and vibration reduction for long shifts.
Enhanced Safety: Standard LED lights (energy-efficient, long-lasting), large panoramic rearview mirrors (eliminate blind spots), emergency stop switch, and optional handbrake alarm buzzer.
Superior Visibility & Versatility: Wide-view mast/container mast options, plus optional side shifters for precise load positioning.
Easy Maintenance: Accessible engine compartment, optimized hydraulic breather (with built-in oil filter), and modular components to reduce downtime.
Durable Cooling: Excellent cooling/heat dissipation system to maintain performance during continuous use.

Application Scenarios:

Warehouses & Logistics Centers: For pallet stacking, load transfer in narrow aisles (thanks to compact design).
Manufacturing Facilities: Handling raw materials/finished goods, compatible with heavy-duty daily operations.
European/American Markets: Meets height requirements for overhead guards and EPA emission standards, suitable for local compliance needs.
Retail & Distribution: Efficient loading/unloading of goods, with dual-fuel flexibility adapting to different fuel supply conditions.
Small-to-Medium Workshops: Easy maintenance and single-person operability, reducing labor costs for light-to-moderate material handling tasks.

Product Specifications:

General	Manufacturer Brand				SINOLIFT
	Model				FY20C	FY25C
	Power Type				LPG	LPG
	Rated capacity		Q	kg	2000	2500
	Load center		C	mm	500	500
Dimensions	Lift height		H	mm	3000	3000
	Free lift height		H5	mm	125	125
	Fork size		L×W×T	mm	1070×120×40	1070×120×40
	Mast tilt angle		a/β	deg	1	1
	Front overhang		L2	mm	445	445
	Rear overhang		L3	mm	510	510
	Overall dimensions	Length to face of fork	L	mm	2355	2355
		Overall width	W	mm	1110	1110
		Height of load backrest	H6	mm	1225	1225
		Mast lowered height	H1	mm	2070	2070
		Mast extended height	H2	mm	4070	4070
		Overhead guard height	H3	mm	2080	2080
	Turning radius		r	mm	2110	2110
	Min. Intersecting aisle		Ra	mm	2316	2316
	Min. Right angle stacking aisle width		RASA	mm	3955	3955
Performance	Laden/Unladen	Travel speed		km/h	16/17	16/17
		Lift speed		mm/s	530/570	530/570
		Lowering speed		mm/s	600/300	600/300
	Max. gradeability (Loaden/Unloaden)			%	20	20
	Max. drawbar pull			N	20000	20000
	Self weight			kg	3445	3655
Power Unit	Tires	Front			21×7×15	21×7×15
	Tires	Rear			16(1/4)×6×11(1/4)	16(1/4)×6×11(1/4)
	Tread	Front	W1	mm	902	902
	Tread	Rear	W2	mm	900	900
	Wheelbase		L4	mm	1400	1400
	Min. ground clearance		H4	mm	80	80
Drive units & control	Engine	Model			NISSAN K25 EPA	PSI 2.4
		Rated output		kw/rpm	42/2700	46/2700
		Rated torque		N.m/rpm	185/1350	168/1600
		No. of cylinder			4	4
		Bore×stroke		mm	89×100	86.5×100
		Displacement		cc	2488	2351
		Emission Standard			EPA T2 / EURO IV	EPA T4 / EURO V
	Transmissions	Type			Mechanical / Hydraulic	Mechanical / Hydraulic
	Hydraulic system working pressure			Mpa	18	18

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 0

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 1

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 2

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 3

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 4

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 5

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 6

Lugar de origem:	China
Marca:	SINOLIFT
Certificação:	CE, ISO9001
Número do modelo:	SÉRIE C 2.0-2.5T

Quantidade de ordem mínima:	1 conjunto
Preço:	Negociável
Detalhes da embalagem:	Pacote da exportação de Sandard
Tempo de entrega:	15 dias
Termos de pagamento:	L/C, D/A, D/P, T/T
Habilidade da fonte:	55 unidades

Nome do produto:	Empilhadeira de pneu com almofada de combustão interna SÉRIE C 2.0-2.5T	Tipo de energia:	GLP
Centro de carga:	500 mm	Altura de elevação:	3000 mm
Tamanho da forquilha:	1070 × 120 × 40 mm	Raio de giro:	2110mm
Distância entre eixos:	1400mm	Garantia:	1 ano
Após o serviço:	serviço on-line, peças de reposição gratuitas
