| Lugar de origem: | China |
|---|---|
| Marca: | SINOLIFT |
| Certificação: | CE, ISO9001 |
| Número do modelo: | EHLT15S-I |
| Quantidade de ordem mínima: | 1 conjunto |
| Preço: | Negociável |
| Detalhes da embalagem: | Pacote da exportação de Sandard |
| Tempo de entrega: | 15 dias |
| Termos de pagamento: | Western Union, MoneyGram |
| Habilidade da fonte: | 5000 grupos/boca |
| Nome do produto: | SINOLIFT EHLT15S-I Porta-paletes hidráulico de alta elevação em aço inoxidável | Aço Inoxidável 304 | Capacidade de carga nominal: | 1500KG |
|---|---|---|---|
| Altura mínima dos garfos: | 85mm | Altura máxima dos garfos: | 800mm |
| Espessura da forquilha: | 50mm | Comprimento total: | 1640 mm |
| Altura total: | 1640 mm | raio de viragem mínimo: | 1260mm |
| Capacidade da bateriaCapacidade da bateria: | 12/65 V/AH | Peso líquido: | 148/153kg |
Product Name:

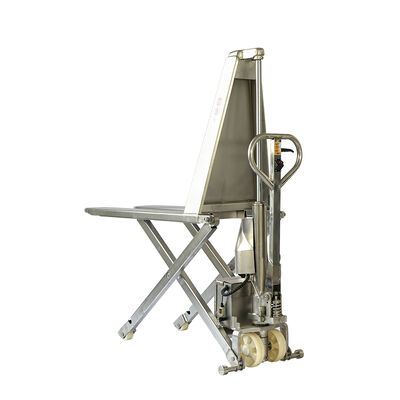

SINOLIFT EHLT15S-I Stainless Steel High Lift Hydraulic Pallet Truck | 304 Stainless Steel | 800mm Max Lift | Electric & Manual Mode | For Food, Chemical, Medical Industries
Product Description:
The SINOLIFT EHLT15S-I Stainless Steel High-Lift Hydraulic Pallet Truck is a corrosion-resistant, ergonomic material handling solution built from 304 stainless steel for durability in hygiene-sensitive and harsh environments. Featuring a long-stroke hydraulic cylinder, a reinforced single-scissor structure, auxiliary support wheels, and dual manual/electric operation modes, it combines transport and lifting functions to reduce operator strain and boost efficiency. Ideal for workshops, chemical plants, ports, logistics centers, warehouses, and medical facilities, this pallet truck delivers stable performance with a max lifting height of 800mm and a minimum fork height of 85mm.
Key Product Features:
Application Scenarios:
FAQ:
1. What materials is the pallet truck made of?
It is constructed from 304 stainless steel, making it corrosion-resistant and suitable for hygiene-sensitive environments.
2. What is the maximum and minimum lifting height?
The maximum lifting height is 800mm, and the minimum fork height is 85mm.
3. What operation modes are available?
It supports both manual and electric operation via the ergonomic stainless steel handle with a lift button, a manual release valve, and a power switch.
4. What types of pallets is this truck compatible with?
It is suitable for single-face 9-block pallets and stringer pallets. For pallet inner widths less than 700mm, choose 540mm fork outer width; for widths greater than 700mm, choose 680mm fork outer width.
5. What are the wheels made of?
The wheels are made of extra-wide, thickened custom nylon, offering wear resistance, low noise, and high load capacity.
6. Is this pallet truck suitable for medical facilities?
Yes, its 304 stainless steel construction meets strict hygiene standards, making it ideal for medical and food processing environments.
Product Specifications:
| Model | EHLT15S-I | |
| Rated Load Capacity | kg | 1500 |
| Forks Minimum Height | mm | 85 |
| Forks Maximum Height | mm | 800 |
| Max. Lifting Stroke (F) | mm | >715 |
| Forks Outside Width | mm | 540/680 |
| Forks Inside Width | mm | 220/360 |
| Fork Dimensions | mm | 1150 |
| Single Fork Width | mm | 160 |
| Fork Thickness | mm | 50 |
| Overall Length | mm | 1640 |
| Overall Height | mm | 1640 |
| Load Wheel Size | mm | Φ80 × 70 |
| Steering Wheel Size | mm | Φ180 × 50 |
| Minimum Turning Radius | mm | 1260 |
| Lift Motor | V/KW | 1.2V/0.8 |
| Wheel Material | PU/Nylon | |
| Battery Capacity | V/AH | 12/65 |
| Net Weight | kg | 148/153 |
