| Lugar de origem: | China |
|---|---|
| Marca: | SINOLIFT |
| Certificação: | CE, ISO9001 |
| Número do modelo: | HLT15S-II |
| Quantidade de ordem mínima: | 1 conjunto |
| Preço: | Negociável |
| Detalhes da embalagem: | Pacote da exportação de Sandard |
| Tempo de entrega: | 15 dias |
| Termos de pagamento: | Western Union, MoneyGram |
| Habilidade da fonte: | 5000 grupos/boca |
| Nome do produto: | Porta-paletes hidráulico de alta elevação de aço inoxidável Sinolift HLT15S-II para manuseio de mate | Capacidade de carga nominal: | 1500KG |
|---|---|---|---|
| Altura mínima dos garfos: | 85mm | Altura máxima dos garfos: | 800mm |
| Espessura da forquilha: | 50mm | Comprimento total: | 1540mm |
| Altura total: | 1260mm | raio de viragem mínimo: | 1260mm |
| Peso de serviço: | 108Kg |
Product Overview:

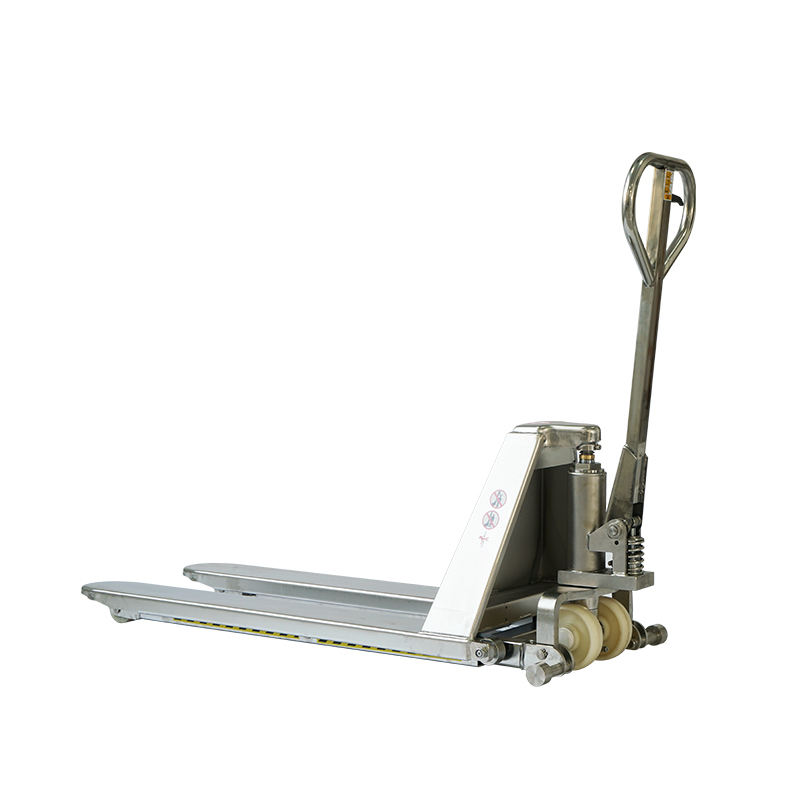

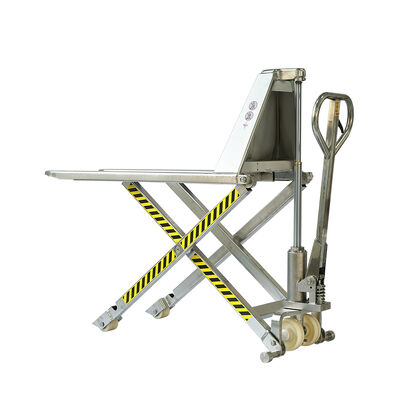

Sinolift Stainless Steel High Lift Hydraulic Pallet Truck HLT15S-II for Corrosion-Resistant Material Handling
The Stainless Steel High Lift Hydraulic Pallet Truck is a versatile material handling solution designed for transporting and lifting loads in demanding environments. Manufactured with 304 stainless steel and reinforced thickened steel plates, this pallet truck offers excellent corrosion resistance, enhanced safety, and long service life, making it ideal for industries with strict hygiene or durability requirements.
Widely used in workshops, chemical plants, ports, logistics centers, warehouses, and medical facilities, this truck combines robust construction with ergonomic operation to improve productivity and reduce operator fatigue.
Key Features:
Equipped with a three-stage hydraulic cylinder, the truck delivers powerful, stable lifting performance while maintaining a lower overall height. The tightly sealed cylinder structure ensures smooth vertical movement, reliable load bearing, and extended durability even under frequent use.
This high-lift pallet truck integrates material transport and lifting functions in a single unit. Raising loads to an ergonomic working height, it reduces frequent bending, minimizes physical strain, and significantly improves handling efficiency. Both minimum fork height and maximum lifting height are optimized to adapt to various operational needs.

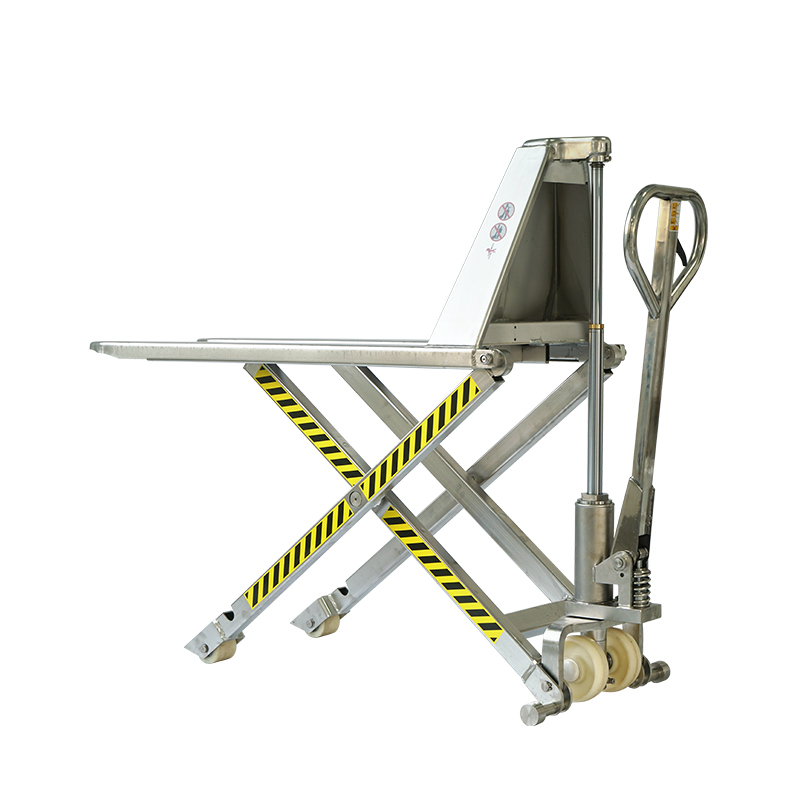

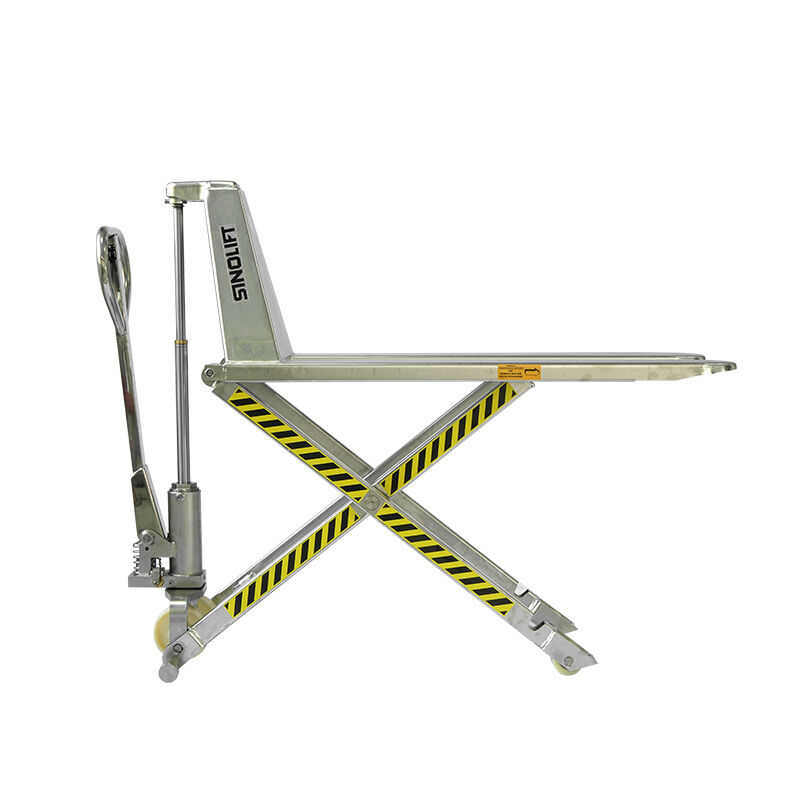

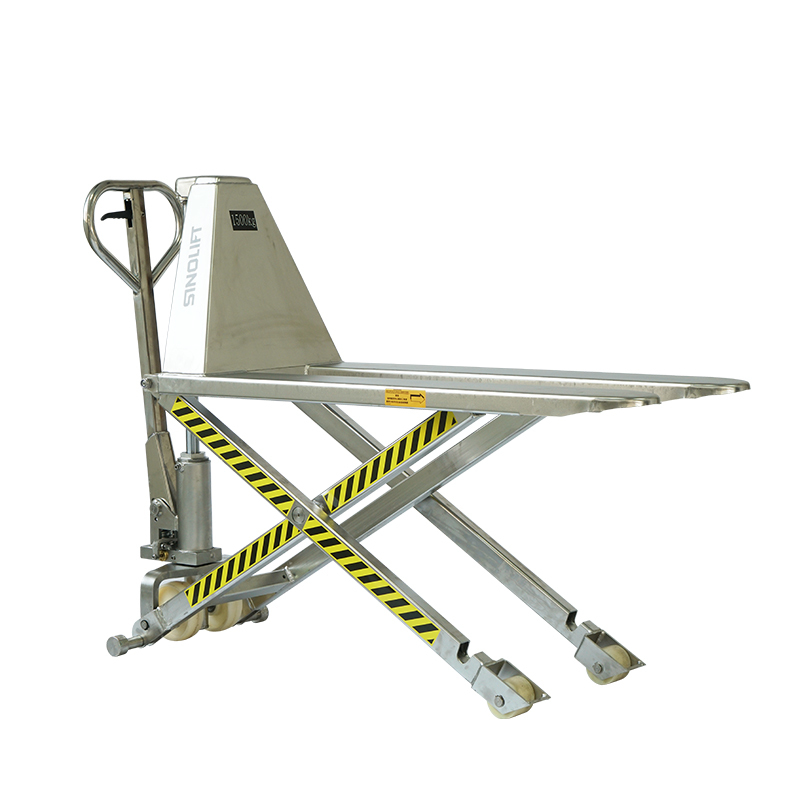

The thickened single scissor design provides strong resistance to bending and deformation. Reinforced support points ensure excellent stability and load-bearing capacity, even when handling heavy loads at elevated heights.

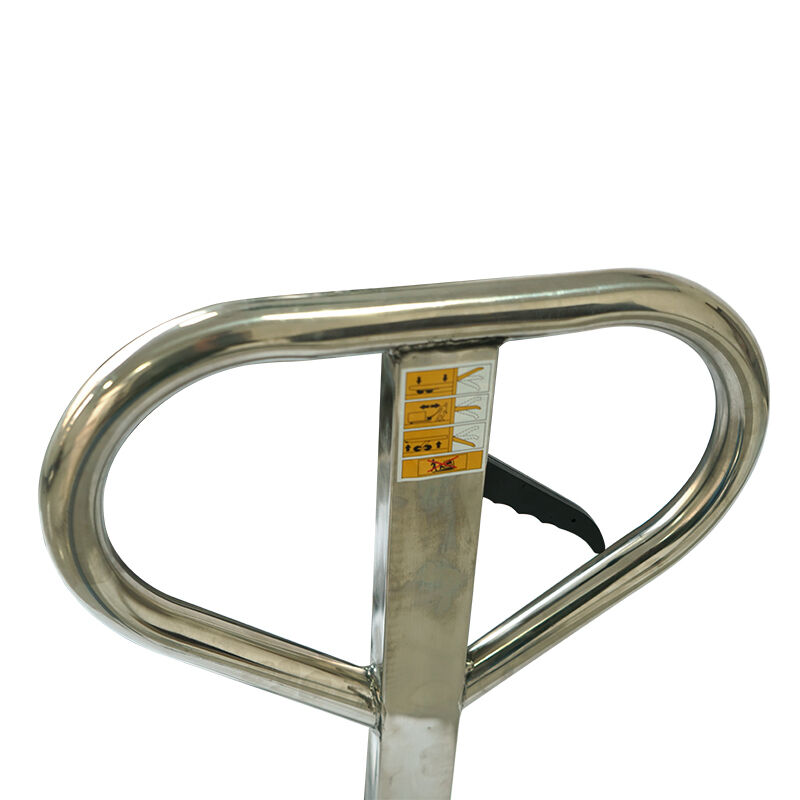

Featuring an ergonomic, large stainless steel handle, the pallet truck allows operators to lift up to one ton with one hand. The wide 90° pumping stroke delivers fast and powerful lifting, while the heavy-duty precision steel spring ensures smooth handle rebound and long service life without impacting the truck body.
When lifted to a certain height, auxiliary support wheels engage the ground to prevent movement and enhance overall stability. The truck is also equipped with wear-resistant nylon tandem wheels, offering low noise operation, high load capacity, and smooth travel, even during long-term use.
Designed for single-face 9-block pallets and stringer pallets, the truck can be configured based on pallet dimensions:
For pallet inner width less than 700 mm, choose 540 mm fork outer width
For pallet inner width greater than 700 mm, choose 680 mm fork outer width
Product Specifications:
| Model | HLT15S-II | |
| Rated Load Capacity | kg | 1500 |
| Forks Minimum Height | mm | 85 |
| Forks Maximum Height | mm | 800 |
| Max. Lifting Stroke (F) | mm | >715 |
| Forks Outside Width | mm | 540/680 |
| Forks Inside Width | mm | 220/360 |
| Fork Dimensions | mm | 1150 |
| Single Fork Width | mm | 160 |
| Fork Thickness | mm | 50 |
| Overall Length | mm | 1540 |
| Overall Height | mm | 1260 |
| Load Wheel Size | mm | Φ74 × 70 |
| Steering Wheel Size | mm | Φ150 × 50 |
| Minimum Turning Radius | mm | 1260 |
| Wheel Material | PU/Nylon | |
| Service Weight | kg | 108 |
