| Lugar de origem: | CHINA |
|---|---|
| Marca: | SINOLIFT |
| Certificação: | CE |
| Número do modelo: | SH01 |
| Quantidade de ordem mínima: | 1 conjunto |
| Preço: | Negociável |
| Detalhes da embalagem: | Pacote da exportação de Sandard |
| Tempo de entrega: | 15 dias |
| Termos de pagamento: | L/C, D/A, D/P, T/T, Western Union |
| Habilidade da fonte: | 1000 grupos/boca |
| Nome do produto: | Sinolift Sh01 Smart Single Singlever String Haste Carregando Caminhão | Estilo de direção: | pedestre |
|---|---|---|---|
| Carga nominal: | 500 kg | Peso líquido: | 230 kg |
| Garantia: | 1 ano | Depois do serviço: | Serviço on-line, peças de reposição gratuitas |
Product Name

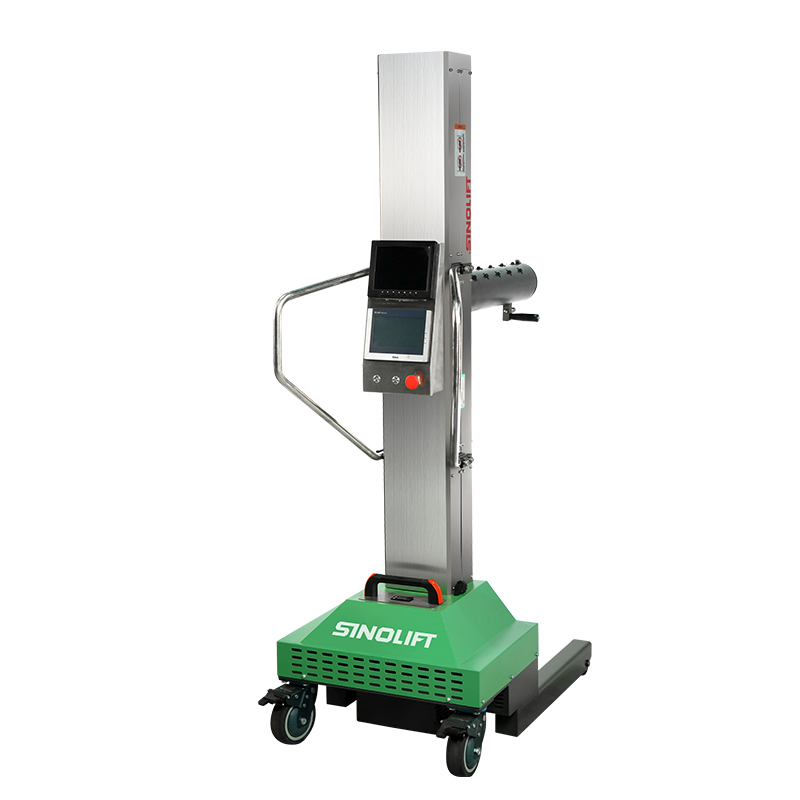

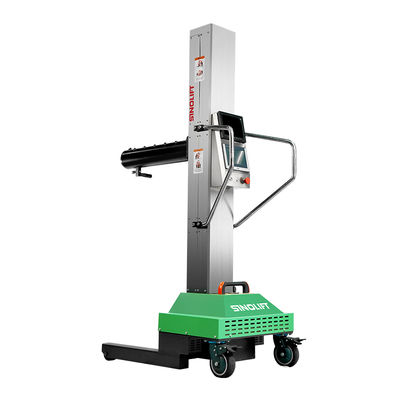

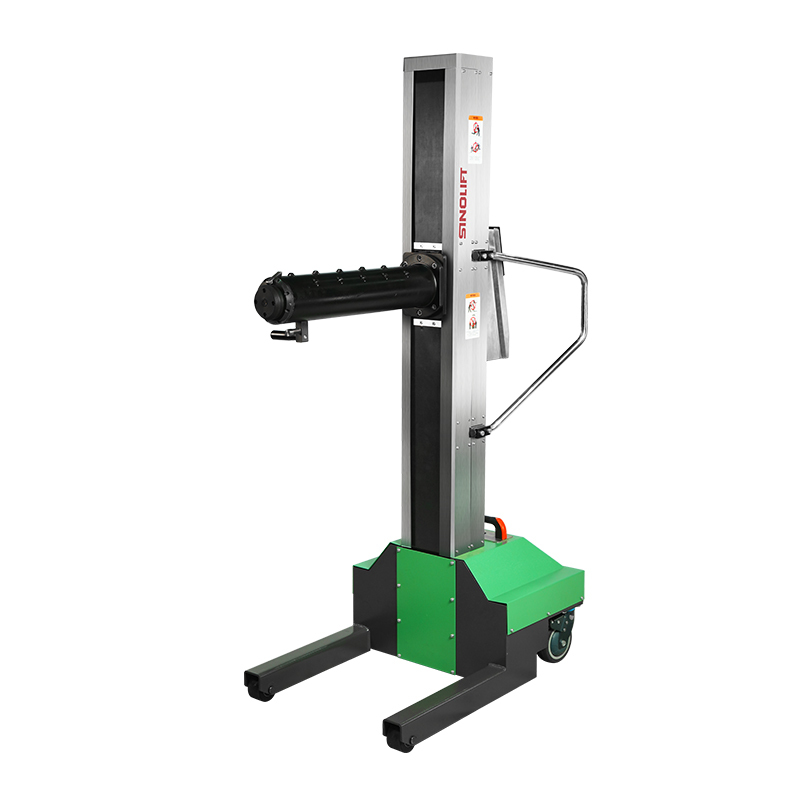

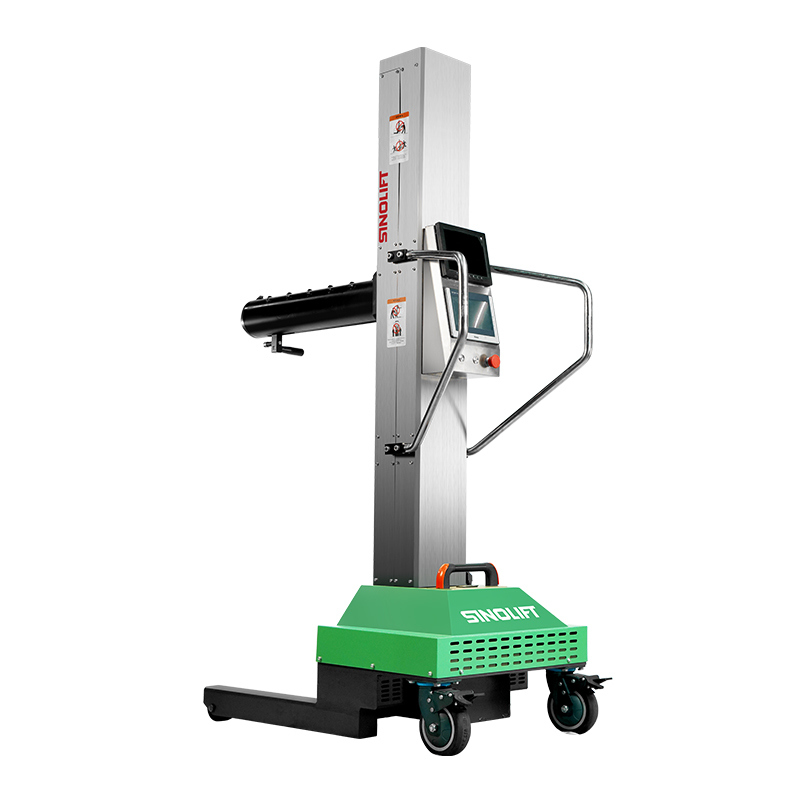

SINOLIFT SH01 Smart Single Cantilever String Rod Loading Truck
SINOLIFT SH01 Smart Single Cantilever String Rod Loading Truck is an automated guided vehicle (AGV) specifically designed for handling coil-type materials. Its core feature is a flexible lifting and movable single cantilever arm, along with a loading rod at the front end for carrying rolled materials. This equipment is engineered for efficient and precise transportation of coil-shaped loads—such as metal coils, paper rolls, or electrode rolls in the new energy industry—significantly enhancing logistics automation capabilities.
Key Features:
1. Smart & User-Friendly:

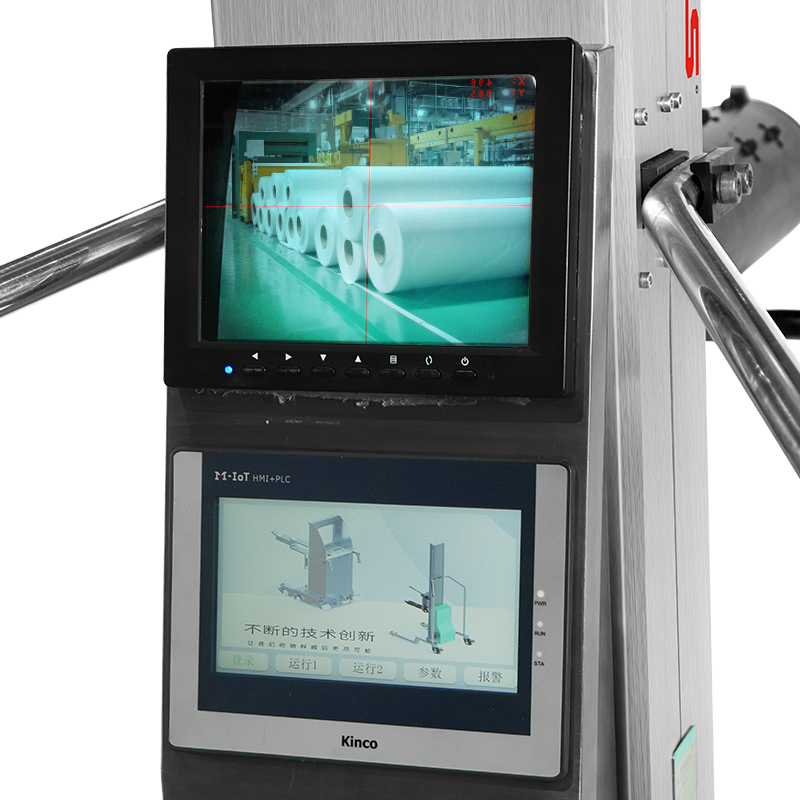

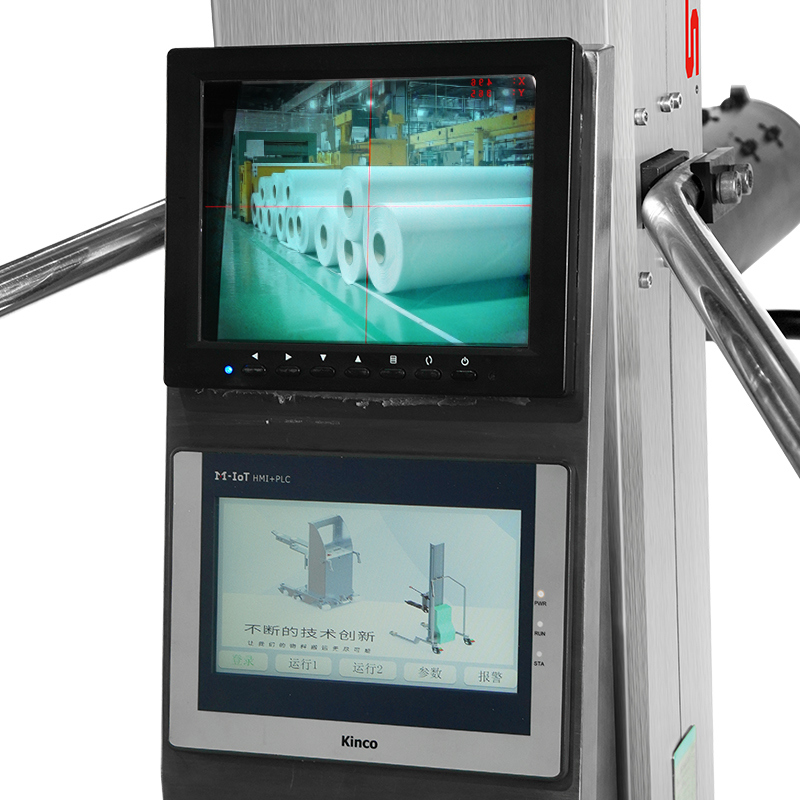

Electric lifting with manual fine-tuning and intuitive touchscreen control, supporting one-touch raising/lowering.

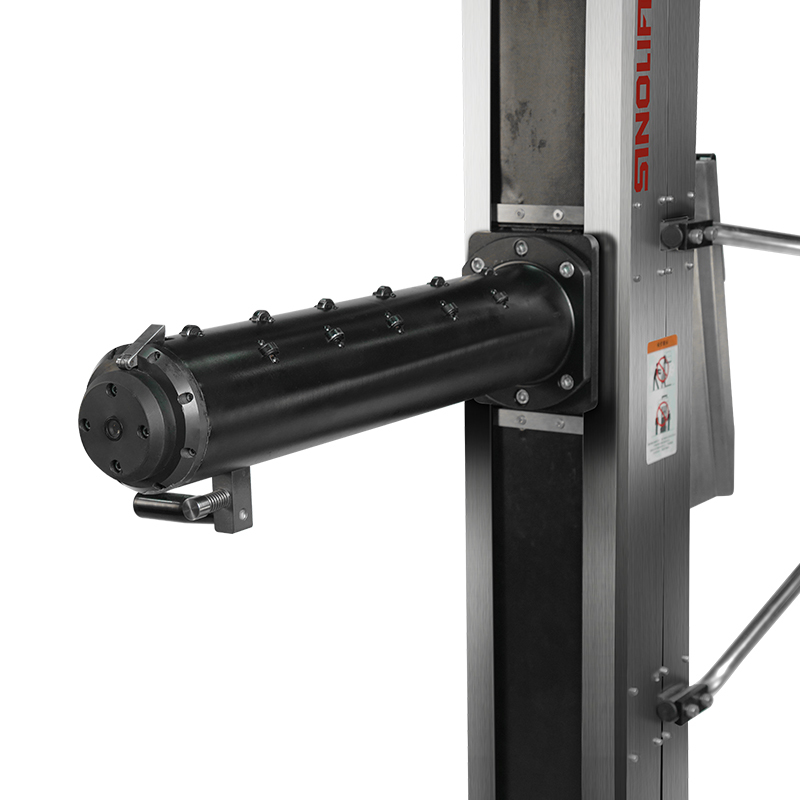

Quick-detachable loading rods to adapt to various roll inner diameters.
2. Safe & Reliable:
Four-wheel design (2 drive wheels + 2 swivel rear wheels with brakes) ensures a small turning radius for flexible movement in narrow workshops.
Stable chassis design with a low center of gravity and a wide base to minimize tipping risks.
3. Efficient Operation:
The electric pushing system operates at 25–30 mm/s, featuring a guide device at the rod tip for seamless roll alignment.
Intelligent control display enables auto-alignment and correction for precise positioning.
Product Specifications
| Model | SH01 | |
| Type | Semi-Electric | |
| Drive Method | Ball Screw | |
| Rated Load | kg | 500 |
| Load Center | mm | 400 |
| Min. Height | mm | 200 |
| Max. Height | mm | 1600 |
| Overall Length | mm | 1260 |
| Overall Width | mm | 634 |
| Overall Height | mm | 1965 |
| Cantilever Specification | mm | 136×680 |
| Front Wheel Specification | mm | Φ80x55-2 |
| Rear Wheel Specification | mm | Φ150x50-2 |
| Lifting Motor | KW | DC 0.75 |
| Battery specification | V/Ah | DC 48/15Ah |
| Min. Turning Radius | mm | 1060 |
| Control Type | PLC Control | |
| Noise Level | DB | <70 |
| Steering Type | Mechanical | |
| Braking System | Dual Swivel AB Brake | |
| Net Weight | kg | 230 |
